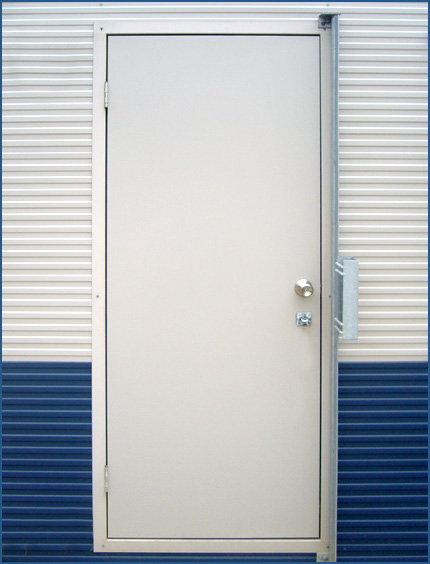

SINGLE DOOR LEAF
Height: 2040mm
Width: 820, 920, & 1050mm
Thickness: 40mm
SKIN MATERIAL:
0.6mm galvanized steel
CORE MATERIAL:
Standard: Rigid Polystyrene

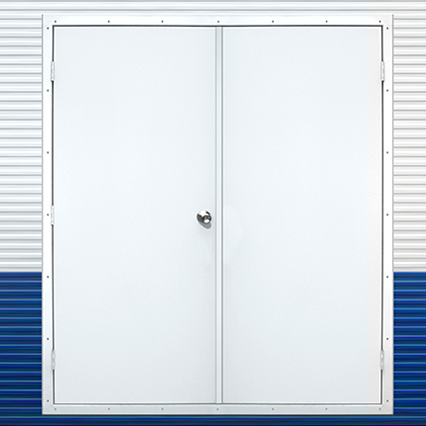

DOUBLE DOOR LEAF
Height: 2040mm
Width: 2/ 820, & 920mm
Thickness: 40mm
SKIN MATERIAL:
0.6mm galvanized steel
CORE MATERIAL:
Standard: Rigid Polystyrene
INTERNAL STRENGTHENING
Reinforcing block for door closer.
Reinforcing block in door lock area.
LOCKING
Pre-drilled to accept cylindrical lock with 70mm set back
FINISHING
Polyester powder coat finish
Standard Colour: Surfmist
(Colorbond colour range available.
Some colours stocked, others produced to order)
Surface Finish: Flat
(Produced to order)
EXTERNAL FRAME & INTERNAL TRIM
Sizes: Refer to Squareline/Rebate drawings
Material: 1.5mm galvanized Steel
Finishing: Polyester powder coat finish
Standard Colour: Surfmist
(Colorbond colour range available.
Some colours stocked, others produced to order)
Surface Finish: Stipple
(Produced to order)
SEALS AND HINGES
Seals : High quality EPDM Rubber
Hinges
Qty per Door: Squareline: 3, Rebate: 2
Material: 304 Stainless Steel
